  • Need XOP board wiring for sweep reverse

    Anyone have the information for wiring a converted SS chassis with an XOP to get the sweep reverse? I have it somewhere, but can't find it. I need this for a 6 laner.

    Thanks!
    Jon
    I've had enough of hope & chains.

  • #2
    I have it Jon. I'll have to get it when back in the office though. The relay goes in the BE control box and parallels the S.R.
    .
    .
    .
    This post is not an unpaid promotion of my business.

    Comment


    • #3
      Thanks Ted!
      I've had enough of hope & chains.

      Comment


      • #4
        I've looked, it evades me. I do recall the pins into the scoring interface cable is the same as all others.
        The relay wire is threaded to the BE control box where each wire parallels the SR switch. I'm in a center now that has them. I'll document the pinouts. Is there a specific part of the circuitry you need?
        .
        .
        .
        This post is not an unpaid promotion of my business.

        Comment


        • #5
          Basically the entire thing. These guys don't have any sweep reverse installs at this time. All I have found so d\far is the jumper diagram for the board.

          Thanks!
          I've had enough of hope & chains.

          Comment


          • #6
            Can you guys share the documents with me, I got only 1 lane with auto-SR. but that is an expensive part to order while it's a simple trick. built 1 myself but burned also a board with it. So this time I will have it right the first time. Thanks guys

            Comment


            • #7

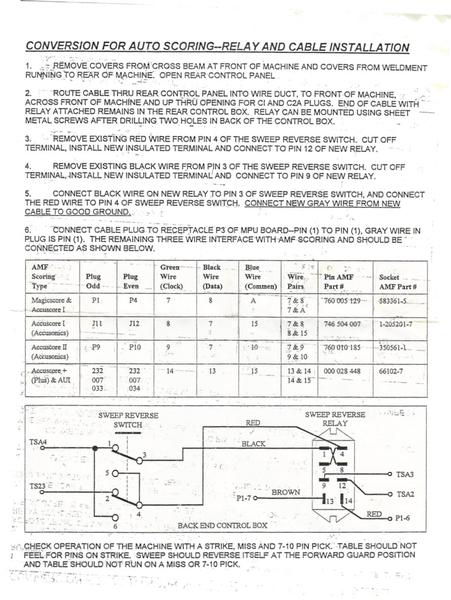

              This very old, stops at AccuScore + but hope it helps...
              Attached Files

              Comment


              • #8
                Thanks Ron, it's certainly more than I have now!
                I've had enough of hope & chains.

                Comment


                • #9
                  Here is the hookup in the BE control box.

                  XOP relay wiring.jpg
                  .
                  .
                  .
                  This post is not an unpaid promotion of my business.

                  Comment


                  • #10
                    Thanks Ron & Ted!
                    I've had enough of hope & chains.

                    Comment


                    • #11
                      RonB
                      If at first you don't succeed, try, try, again. Then quit. There's no use being a damn fool about it." -W.C.Fields

                      Comment
