  • THE BLACK CAM

    I recently got the chance to take a couple shots of the edge black cam. I have a shot of each side and some vids, for some reason not to good in quality, of a running dist. with one on. To watch it run, you really see no big difference between the two. there is a lot smoother 3 to 2 and it looks like when it stops along the back row, it might go out a little farther. I'll let yoy all be the judge. Will try and get them up in two or three days.
    AMF DOCTOR
    The doctor makes house calls.
    http://s427.photobucket.com/home/AMFDOCTOR/index

  • #2

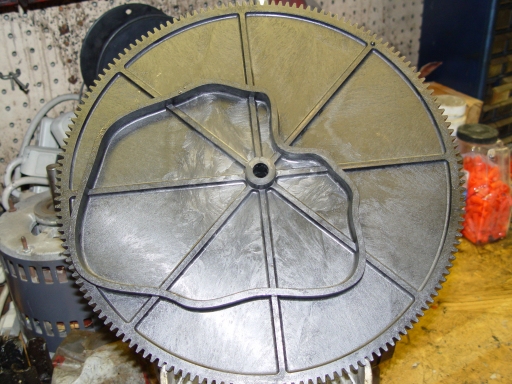

    Doc's Black Cam 1

    If at first you don't succeed, try, try, again. Then quit. There's no use being a damn fool about it." -W.C.Fields

    Comment


    • #3

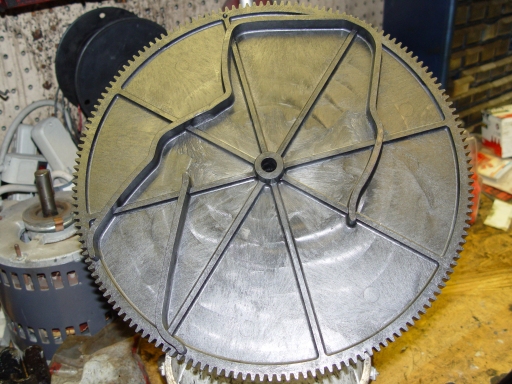

      Doc's Black Cam 2

      If at first you don't succeed, try, try, again. Then quit. There's no use being a damn fool about it." -W.C.Fields

      Comment


      • #4
        Black Cam video AMFDOCTOR

        http://www.bowlaway.com/MOV013A.MPG
        If at first you don't succeed, try, try, again. Then quit. There's no use being a damn fool about it." -W.C.Fields

        Comment


        • #5
          Doc's Black Cam Video 2

          http://www.bowlaway.com/MOV012A.MPG
          If at first you don't succeed, try, try, again. Then quit. There's no use being a damn fool about it." -W.C.Fields

          Comment


          • #6
            Wow the one side is so different. I see how it is smoother going to the 2 and also noticed it doesn't extend as much at the 6.

            Comment


            • #7
              I couldnt see much of anything in that first video. The 2nd one really showed how smooth it indexes though. Sweet its black! the color they all turn anyway!

              Can someone in the know say if this part will be retrofit? I believe it has been stated the pinwheel will not mount to older machines.
              When you know what to do, everything is easy.

              Comment


              • #8
                It seems like it moves back from the 2 to the 4 a lot quicker. or am I just seeing things? If thats the case id be interested in using them on my 70s
                Giving bowlers less to complain about, one lane at a time

                Comment


                • #9
                  I believe the cam II is being tested right now on 70's with steel bins. I don't know if the benefits of replacement will justify the cost. The EDGE lift has been retrofitted to 70's. It is not a simple swap out however, and is expected (by me) to be quite costly. The reason I say that is because of what people were telling me when the durabin was first released. The decision to make an upgrade kit for a 70 has not yet been made (but is under consideration).
                  Regards,

                  Billy T
                  bthompson@qubicaamf.us

                  Comment


                  • #10
                    I am more interested in The EDGE o-pan to bolt on to the 70's.
                    I can't even spell Brunsw-ick anymore!!!

                    Comment


                    • #11
                      Billy, I can tell you it is being tested on 70s with the Durabin.
                      I really enjoy the Simpsons. My problem is that I am starting to look like Homer. Doh!!!

                      Comment


                      • #12
                        Originally posted by pinfeed View Post
                        I am more interested in The EDGE o-pan to bolt on to the 70's.
                        I would think a few small design changes to the distributor could make that possible. I havent really looked into exactly how but I know that raising the pinwheel is kind of out of the question. So maybe a way could be thought up on how to lower the disributor to allow for the drop out of the pinwheel onto a fixed pan. Set up the distributor kind of like a brunswick cross conveyor where the pin would have to be caried up a little bit. Im no engineer though so i dont know if that would even be possible. And grip with the distributor belt would be a big deal with a setup like that
                        Giving bowlers less to complain about, one lane at a time

                        Comment


                        • #13
                          Originally posted by slb785 View Post
                          I would think a few small design changes to the distributor could make that possible. I havent really looked into exactly how but I know that raising the pinwheel is kind of out of the question. So maybe a way could be thought up on how to lower the disributor to allow for the drop out of the pinwheel onto a fixed pan. Set up the distributor kind of like a brunswick cross conveyor where the pin would have to be caried up a little bit. Im no engineer though so i dont know if that would even be possible. And grip with the distributor belt would be a big deal with a setup like that

                          I'm working on a prototype as we speak...'Cept I'm trying to make it bolt-on, without changing any other components.
                          I can't even spell Brunsw-ick anymore!!!

                          Comment


                          • #14
                            I knew someone one here was going to alter this cam at some point - I did some of this myself in the 80's, but I thought I was just being ingenius!!

                            Comment


                            • #15
                              Hey Billy, the cam and arm both come together in a kit don't they? can you let me know the p/n for the kit... \

                              thanks mate..
                              AS REQUESTED....The all new and VERY improved "super cool" Pin_Head with super hip shades.....

                              Comment
