**8270king** · 10-26-2003, 09:42 AM

Re: c-1 plug

C-1 plug looking at chassis left to right across 1-blank 2-input power 3-B.E.main winding 4-B.E.winding 5-pit light 6-blank 7-input power 8-input power second row left to right across 1-blank 2-blank 3-blank 4-spot solenoid 5-respot solenoid 6-neutral 7-table motor break 8-table motor break 9-table motor main winding(TMP-X) third row across 1-blank 2-sweep motor winding(SMP-Y) 3-sweep motor start winding(SMP-Z) 4-blank 5-sweep motor break 6-sweep motor break 7-sweep motor main winding(SMP-X) 8-neutral 4th row across 1-system ground 2-sweep reverse switch 3-sweep reverse switch 4-neutral 5-blank 6-blank 7-neutral 8-blank 9-blank hope this helps pindecked signed felix

**Guest** · 10-27-2003, 08:28 AM

Re: c-1 plug

Thank-you

**RonnieO** · 10-27-2003, 09:24 AM

Re: c-1 plug

I have some good diagrams and charts, if one of the computer wizards on here can scan them and post them for others to see. Give me a fax # or call me at 989-799-8050, Tue./Wed./Thur. Between 9am and 4pm would be best time.

**felix** · 10-28-2003, 12:15 AM

Re: c-1 plug

Coming Soon; To A THEATRE NEAR YOU. [img]/content/btubb/images/%%GRAEMLIN_URL%%/eek.gif[/img] RonnieO's, Charts and Diagrams? From Bay City Michigan..........

**8270king** · 10-28-2003, 12:18 AM

Re: c-1 plug

Originally posted by felix:
Coming Soon; To A THEATRE NEAR YOU. [img]/content/btubb/images/%%GRAEMLIN_URL%%/eek.gif[/img] RonnieO's, Charts and Diagrams? From Bay City Michigan..........

<font size="2" face="Verdana, Helvetica, sans-serif">Sweet.

JK

**TheGMan143** · 10-28-2003, 02:39 AM

**felix** · 10-28-2003, 04:20 AM

Re: c-1 plug

RonnieO's[LIST]
C1 Plug Pin Destination Machine Wireway
C1 Relay "B" Chassis.... Solid State Chassis

13L Ground Line 2
16z Ground Line 2
19NN ................TS 35
21D Ground Line 2
22J TS 7 SMPX(Sweep Motor)
23N TS 27 SMPX (Sweep Motor)
....2 ON Sweep Motor Capacitors
24T TS 23 & 2 RSM (Blue Res.)
....1 ON Sweep Motor Capacitor
28....C2A-24 OFFSPOT SW. COM.
31A TS 22 TMPX (Table Motor)
32E TS 20 & 1 RTM (Blue Res.)&
....2 ON Table Motor Capacitor
34P Ground Line 2
35U TS 4 (Respot Solenoid)
36Y TS 3 (Spot Solenoid)
41C Power Line 1
42H Power Line 1
44S TS 8 Deck Light Power
45W TS 19 Backend Motor Plug 1
47EE Power Line1

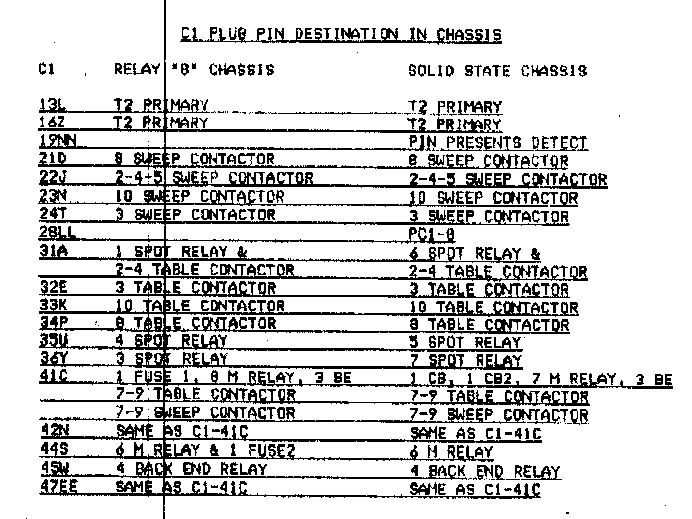

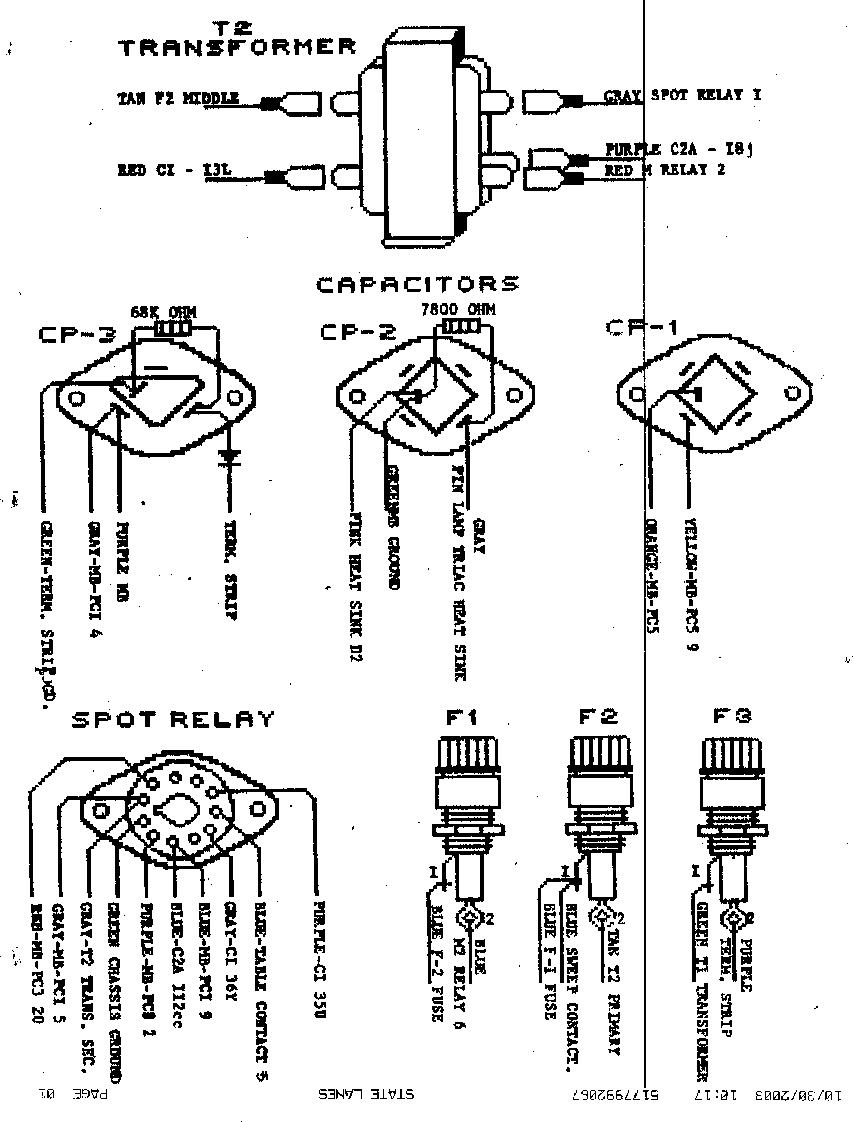

C1 Plug Destination In Chassis
C1 Relay "B" Chassis.... Solid State Chassis

13L T2 Primary
16z T2 Primary
19NN....Pin Presents Detect
21D 8 Sweep Contactor
22J 2-4-5 Sweep Contactor
23N 10 Sweep Contactor
24T 3 Sweep Contactor
28LL....PC1-8
31A 1 Spot Relay&....6 Spot Relay&....
2-4 Table Contactor..2-4 Table Contactor
32E 3 Table Contactor
33K 10 Table Contactor
34P 8 Table Contactor
35U 4 Spot Relay....5 Spot Relay
36Y 3 Spot Relay....7 Spot Relay
41C 1 Fuse 1, 8 M Relay, 3 BE....1 CB, 1 CB2, 7 M Relay, 3 BE
....7-9 Table Contactor....7-9 Table Contactor
....7-9 Sweep Contactor....7-9 Sweep Contactor
42N Same As C1-41C
44S 6 M Relay & 1 Fuse2
45W 4 Backend Relay
47EE Same as C1-41C

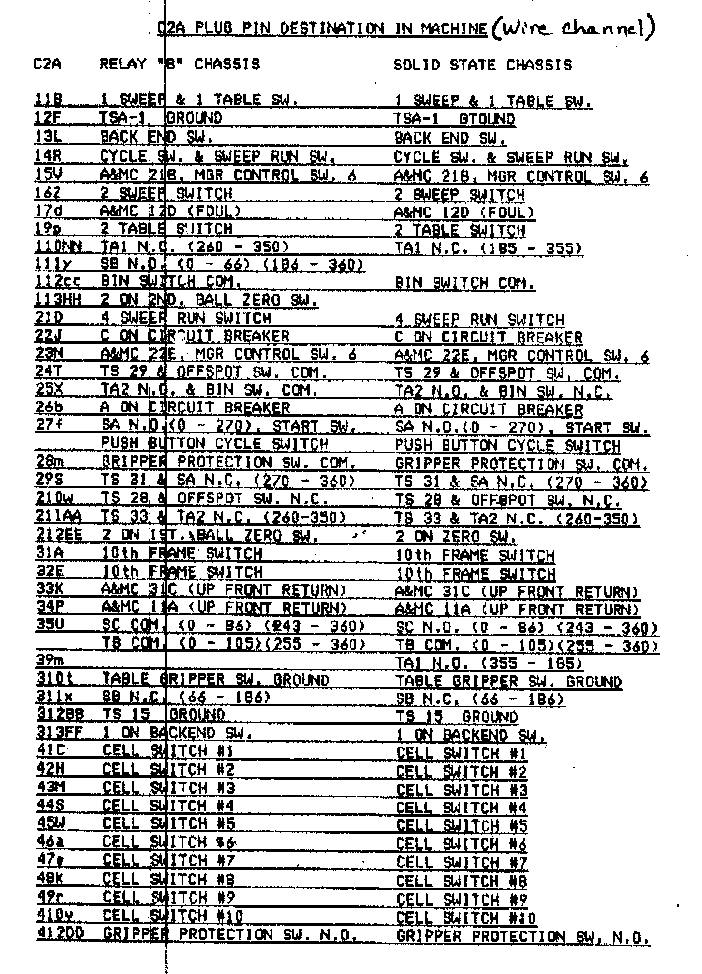

C2A Plug Destination In Machine Wireway
C2A Relay "B" Chassis....Solid State Chassis

11B 1 Sweep & 1 Table SW.
12F TSA-1 Ground
13L Backend SW.
14R Cycle SW. & Sweep Run SW.
15V A&MC 21B, Mgr. Control SW. 6
16z 2 Sweep Run Switch
17d A&MC 12D (Foul)
19p 2 Table Switch
110NN TA1 N.O.(260-350)....TA1 N.C.(185-355)
111y SB N.O.(0-66)(186-360)
112cc Bin Switch Com.
113HH 2 ON 2nd Ball Zero Switch
21D 4 Sweep Run Switch
22J C ON Circuit Breaker
23N A&MC 22E, Mgr. Control SW. 6
24T TS 29 & Offspot SW. Com.
25X TA2 N.O. & Bin SW. Com.
26b A ON Circuit Breaker
27f SA N.O.(0-270), Start SW.
Push Button Cycle Switch
28m Gripper Protection SW. Com.
29s TS 31 & SA N.C.(270-360)
210w TS 28 & Offspot SW. N.C.
211AA TS 33 & TA2 N.C.(260-350)
212EE 2 ON 1st Ball Zero Switch...2 ON Zero SW
31A 10th Frame Switch
32E 10th Frame Switch
33K A&MC 31C(Up Front Return)
34P A&MC 11A(Up Front Return)
35U SC Com.(0-86)(243-360)
....TB Com.(0-105)(255-360)
39m....TA1 N.O.(355-185)
310t Table Gripper Switch Ground
311x SB N.C.(66-186)
312BB TS 15 Ground
313FF 1 ON Backend SW.
41C Cell Switch #1
42H Cell Switch #2
43M Cell Switch #3
44S Cell Switch #4
45W Cell Switch #5
46a Cell Switch #6
47e Cell Switch #7
48k Cell Switch #8
49r Cell Switch #9
410v Cell Switch #10
412DD Gripper Protection SW. N.O.

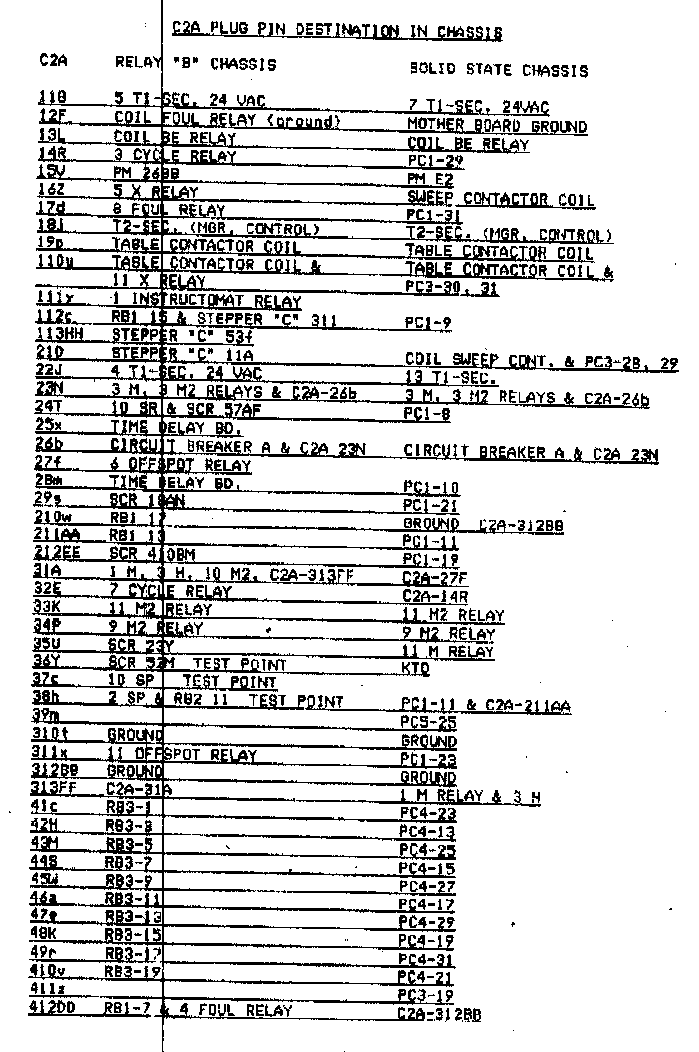

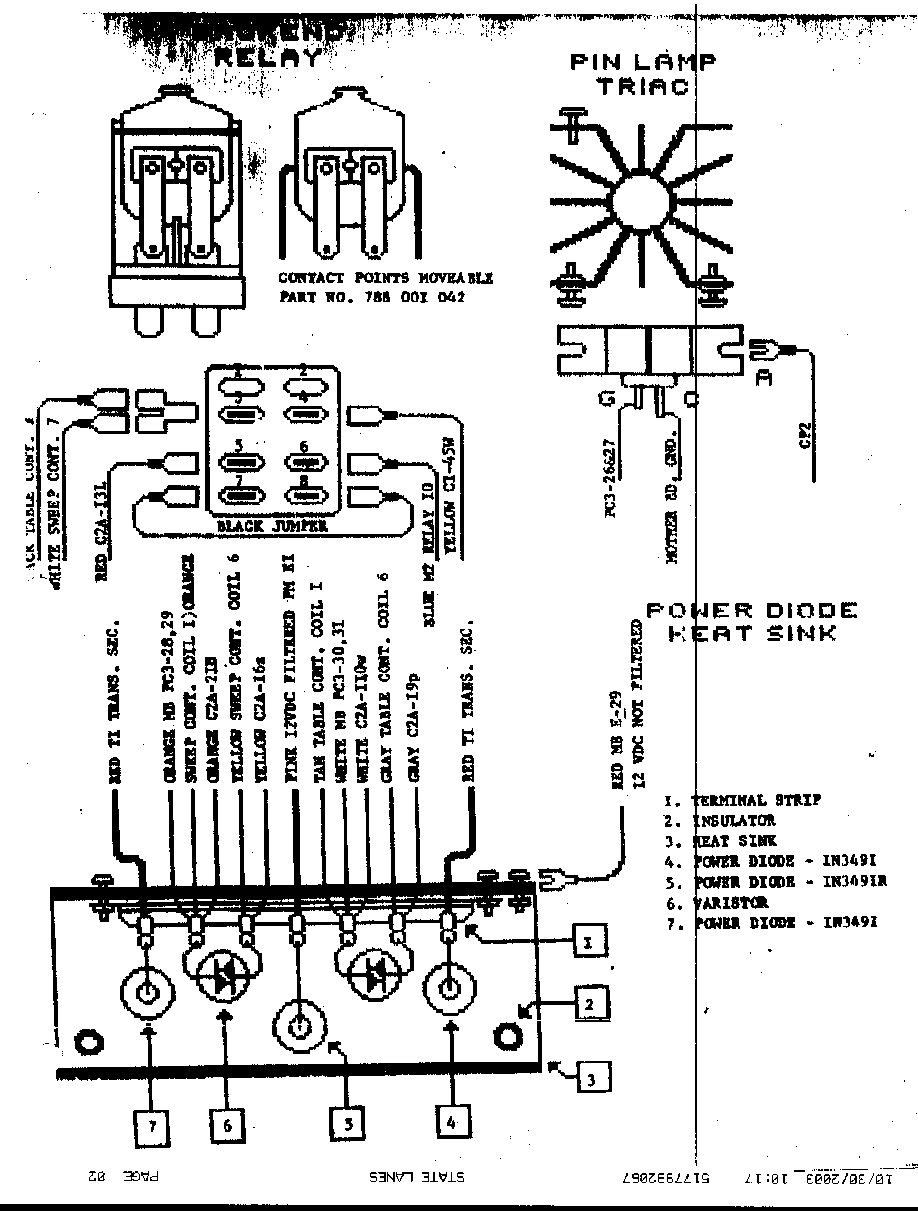

C2A Plug Pin Destination In Chassis
C2A Relay "B" Chassis....Solid State Chassis

11B 5 T1-Sec.24Vac....7 T1-Sec.24Vac
12F Coil Foul Relay(Ground)....Motherboard Ground
13L Coil BE Relay
14R 3 Cycle Relay....PC1-29
15V PM 26BB....PM E2
16Z 5 X Relay....Sweep Contactor Coil
17d 8 Foul Relay....PC1-31
18j T2-Sec.(Mgr.Control)
19p Table Contactor Coil
110v Table Contactor Coil & 11 X Relay....Table Contactor Coil & PC-30,31
111y 1 Instructomat Relay....
112c RB1 15 & Stepper"C" 311....PC1-9
113HH Stepper"C" 53f....
21D Stepper"C" 11A....Coil Sweep Cont. & PC3-28,29
22J 4 T1-Sec. 24Vac....13 T1-Sec.
23N 3 M, 3 M2 Relays & C2A-26b
24T 10 SR & SRC 57AF....PC1-8
25x Time Delay Board....
26b Circuit Breaker A & C2A 23N
27f 6 Offspot Relay....
28m Time Delay Board....PC1-10
29s SCR 18AN....PC1-21
210w RB1 17....Ground C2A-312BB
211AA RB1 13....PC1-11
212EE SCR 410BM....PC1-19
31A 1 M, 3 H, 10 M2,C2A-313FF....C2A-27F
32E 7 Cycle Relay....C2A-14R
33K 11 M2 Relay
34P 9 M2 Relay
35U SCR 23Y....11 M Relay
36Y SCR 52M Test Point....KTO Or KTD
37c 10 SP Test Point....
38h 2 Sp & RB2 11 Test Point....PC1-11 & C2A-211AA
39m....PC5-25
310t Ground
311t 11 Offspot Relay....PC1-23
312BB Ground
313FF C2A-31A....1 M Relay & 3 H
41c RB3-1....PC4-23
42H RB3-3....PC4-13
43M RB3-5....PC4-25
44S RB3-7....PC4-15
45W RB3-9....PC4-27
46a RB3-11....PC4-17
47e RB3-13....PC4-29
48k RB3-15....PC4-19
49r RB3-17....PC4-31
410v RB3-19....PC4-21
411z....PC3-19
412DD Rb1-7 & 4 Foul Relay....C2A-312BB

**felix** · 10-28-2003, 04:21 AM

**RonnieO** · 10-28-2003, 07:54 AM

Re: c-1 plug

Sorry about the wait guys, should be on the way sometime today.

**RonnieO** · 10-28-2003, 08:09 PM

Re: c-1 plug

Big thanks Felix! Hopefully all of it will come out of printers clearly and be a help to any and all.
Felix must be some kinda genious, according to his posting time, he did this BEFORE I sent it to him!

Not my work though. See my posting "Another Mechanic gone", from earlier this month.
Ben Shafer was kind enough to let me run copies of his notes in the past to use as I see fit.

**8270king** · 10-28-2003, 08:28 PM

Re: c-1 plug

Ronnie.....nice work......worthy of the King's hall of fame.

JK

**felix** · 11-19-2003, 07:52 PM

Re: c-1 plug

Bump, RonnieO... [img]/content/btubb/images/%%GRAEMLIN_URL%%/laugh.gif[/img] [img]/content/btubb/images/%%GRAEMLIN_URL%%/wink.gif[/img]

**ewen** · 12-31-2003, 01:09 AM

Re: c-1 plug

bump for lastritesread
